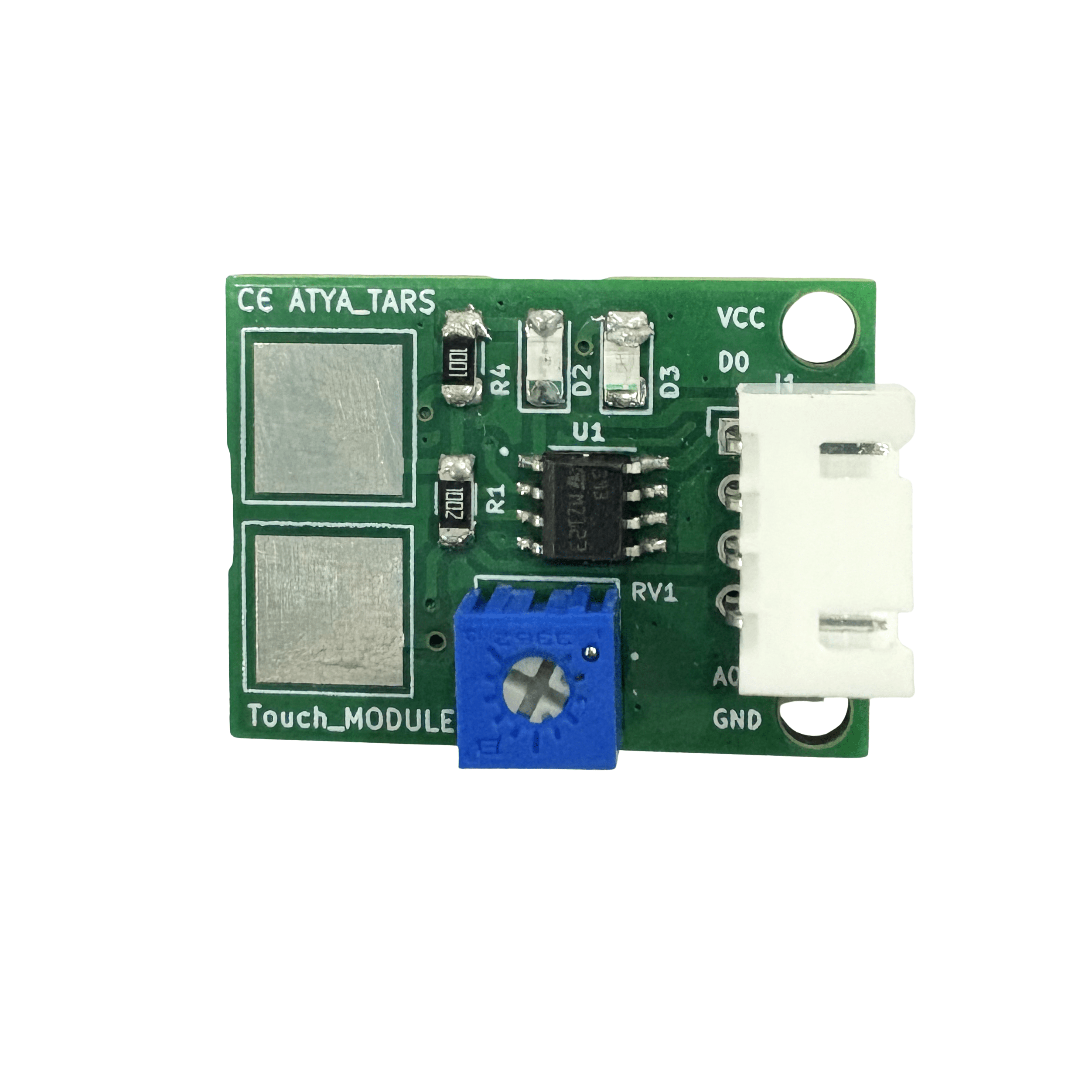

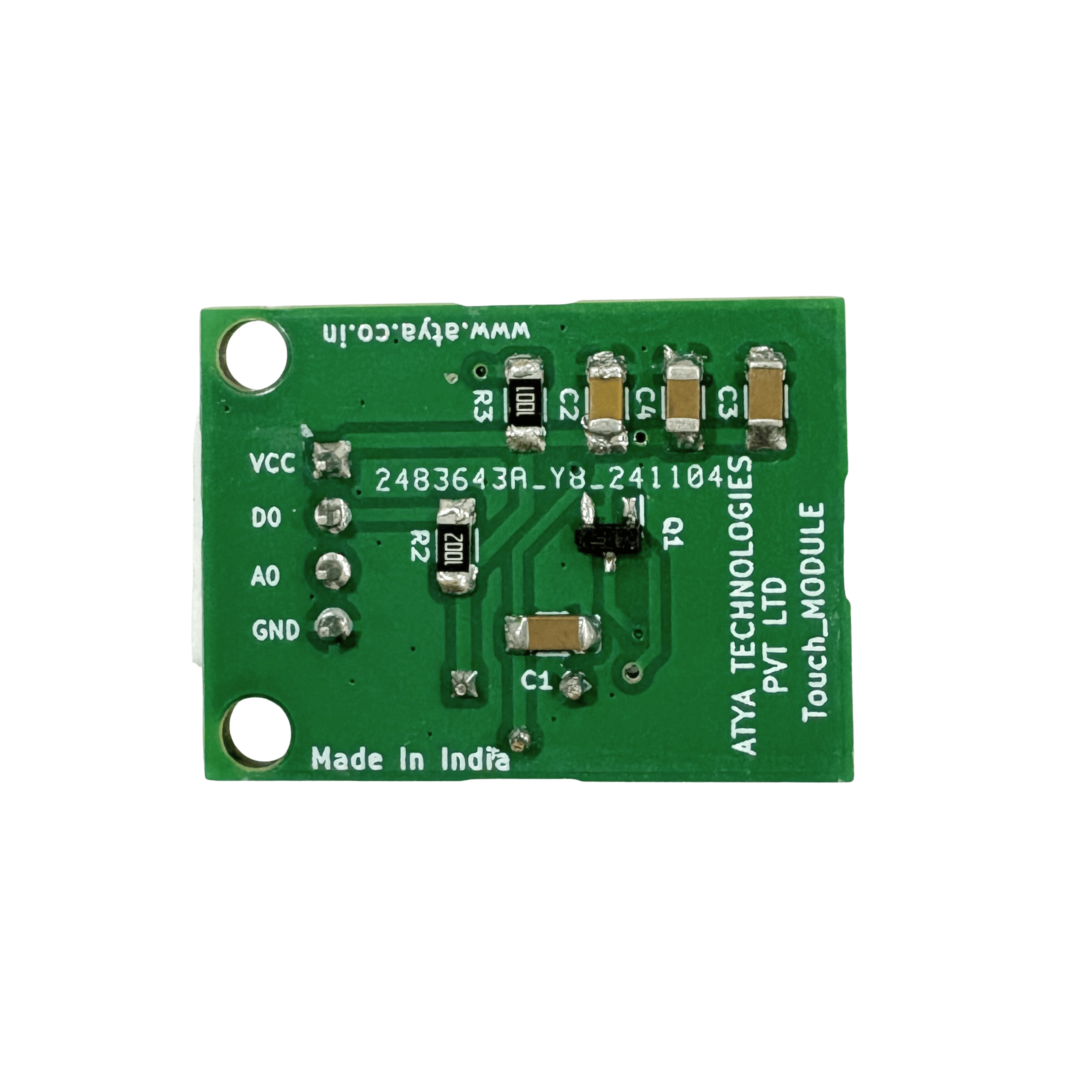

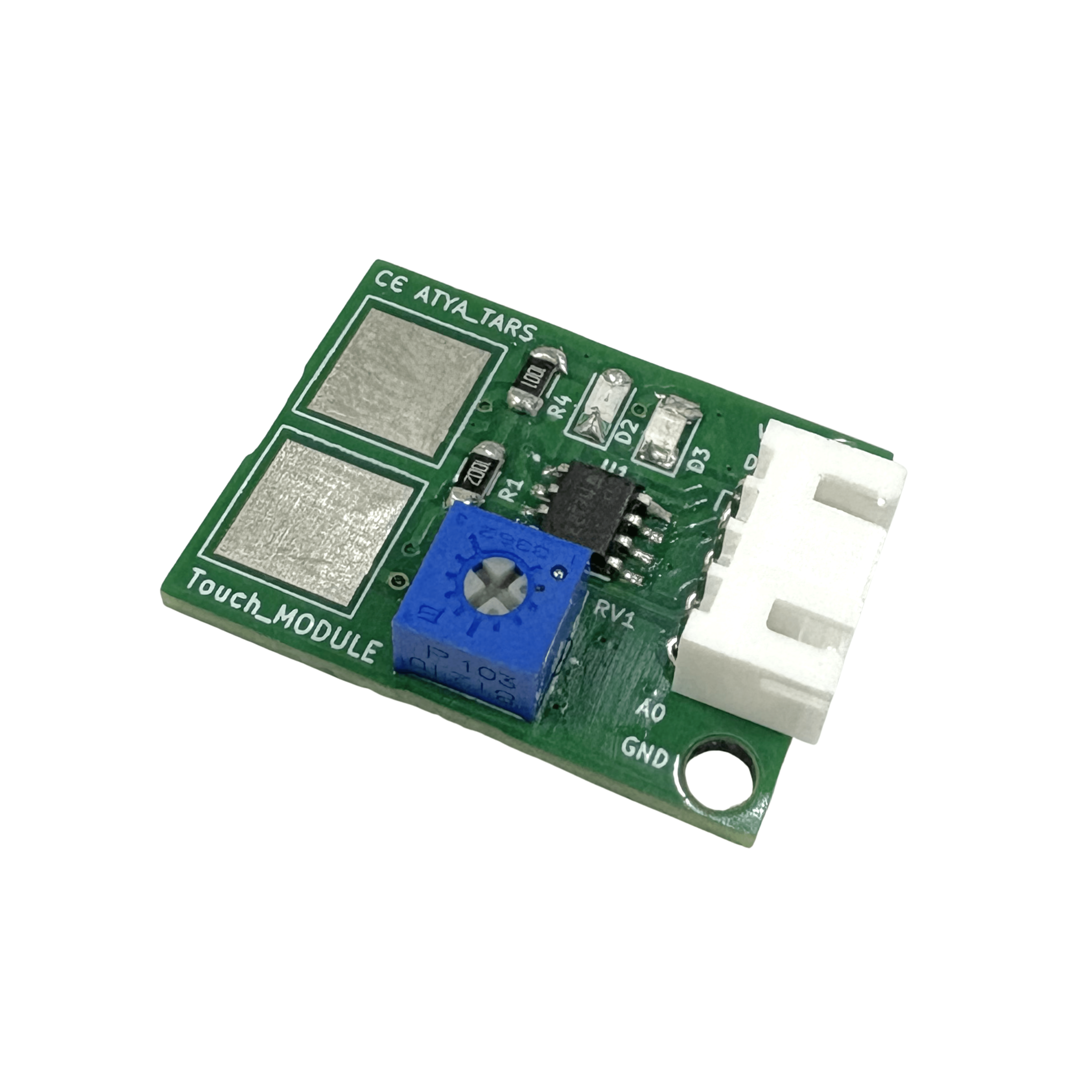

TOUCH SENSOR

Original price was: ₹200.Current price is: ₹99.

11 products sold in last 18 hours
Selling fast! Over 8 people have in their cart

The touch sensor module is a type of switch that only operates when it’s touched by a charged body. It has a high-frequency transistor that can conduct electricity when receiving electromagnetic signals. The Metal Touch Sensor Module utilizes a floating lead on a Darlington transistor to detect a touch.

21 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

General Description:

The touch sensor module is a type of switch that only operates when it’s touched by a charged body. It has a high-frequency transistor that can conduct electricity when receiving electromagnetic signals. The Metal Touch Sensor Module utilizes a floating lead on a Darlington transistor to detect a touch.

Working Principle:

Metal Touch Sensor Module is an analog/digital sensor that uses a transistor to detect changes in electrical conductivity. When the transistor is touched with a finger, the conductivity changes, and the module emits a digital and analog signal. The digital output can be used as a switch that changes state when touched. The analog output can measure the intensity of the touch. The detection threshold can be regulated using the on-board potentiometer.

Specifications:

1. Operating voltage: 3.3 ~ 5.5V DC.

2. Adjustable sensitivity.

3. The output type is analog as well as digital.

4. Single-channel signal output.

5. Detects the presence of metal nearby.

Requirements



S. No. Component Name Values
1 LM393 (OP-AMP)
2 Resistors 150R,1K,10K,100K
3 Variable Potentiometer 100k
4 LED’S
5 Male Connector pin 4



Pin configuration:



S. No. Pins Pin Description
1 A0 Analog output pin
2 GND(G) Connect to ground
3 VCC (+) Input Voltage: 3.3-5V
4 D0 Digital output pin

Applications:

1. Used for screening purposes in malls, airports, and stations.

2. Food processing industry.

3. Home appliances.

4. Cellular handsets.

5. Portable media devices.
