MINI REED SWITCH

Original price was: ₹200.Current price is: ₹99.

3 products sold in last 18 hours
Selling fast! Over 3 people have in their cart

Mini Reed switches are mechanical devices that are triggered by a magnet, causing the magnetic field to pull the metallic switch contacts together. These switches are valued for their compact size, low power consumption, and reliability.

29 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

General Description:

Mini Reed switches are mechanical devices that are triggered by a magnet, causing the magnetic field to pull the metallic switch contacts together. These switches are valued for their compact size, low power consumption, and reliability.

Working Principle:

A mini reed switch operates using two ferromagnetic reeds sealed in a small glass tube. In its resting state, the reeds are separated, keeping the switch open. When an external magnetic field is applied, the reeds become magnetized and attract each other, closing the switch and allowing current to flow. Removing the magnetic field causes the reeds to demagnetize and separate, opening the switch and stopping the current flow. This mechanism ensures precise and reliable switching without physical contact with the actuating magnet.

Specifications:

1. Operates within a range of 3.3V to 5V.

2. Output is digital, meaning the switch provides a clear ON/OFF signal.

Requirements



S. No. Component Name Values
1 Resistors 1K,220R, 10k
2 LED
3 MMBT100 (Bipolar Transistors)
4 MATE-12B-10-15 (Reed Switch)
5 Male pin connector 4

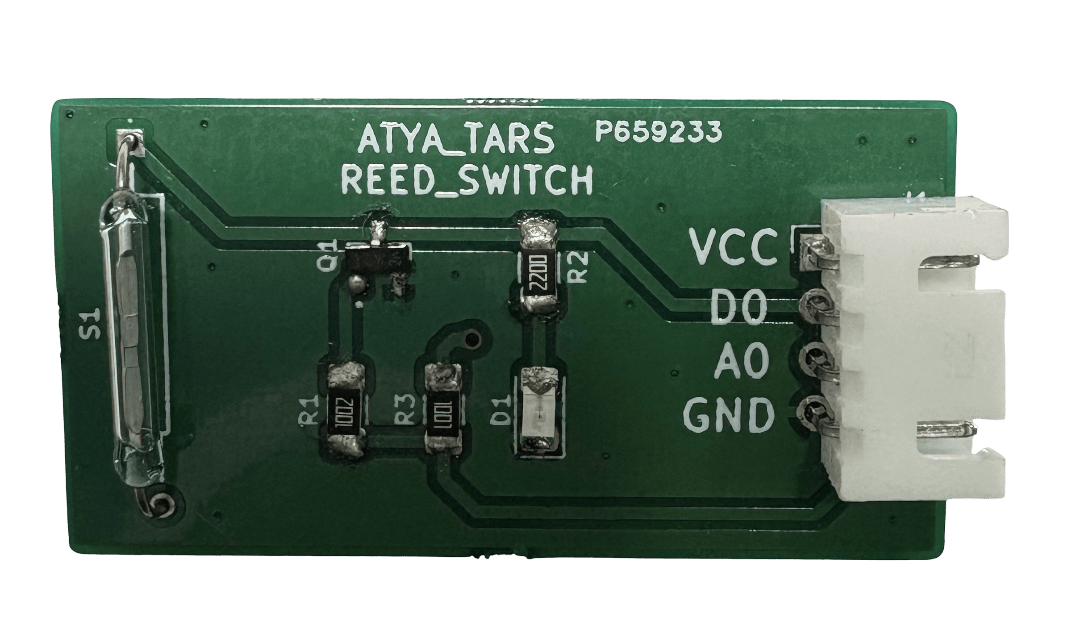

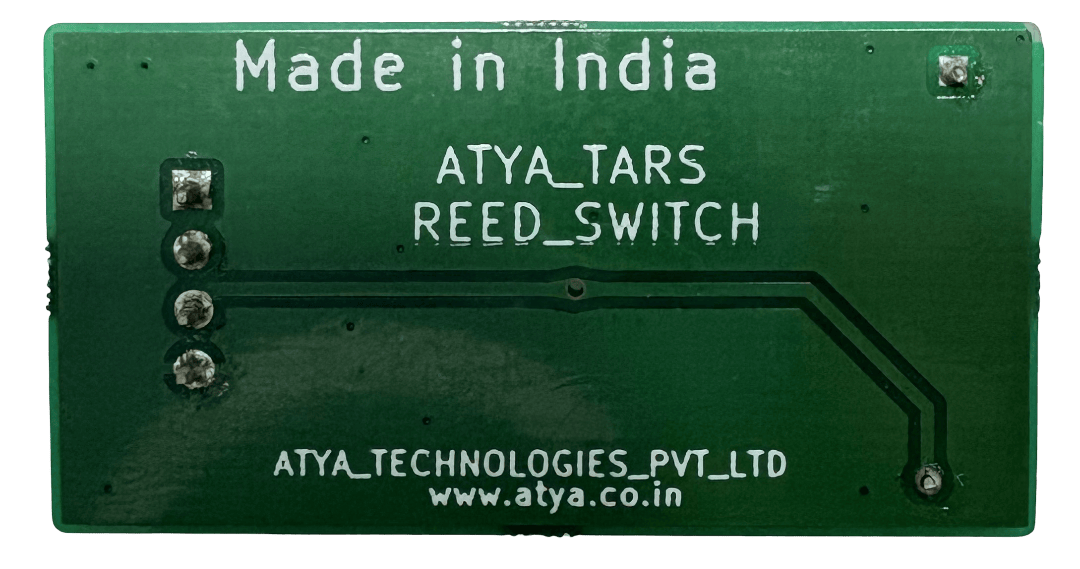

Pin configuration:



S. No. Pins Pin Description
1 VCC 5V
2 D0 digital pin
3 A0 analog pin
4 GND digital clock pin

Applications:

1. Automotive industries utilize mini reed switches for monitoring door positions and seatbelt status.

2. Used in mechanical systems as proximity sensors.

3. Used for position detection in production processes, as well as the measurement of tank levels in the chemical, pharmaceutical, and food industries.

4. Used in medical devices where they detect movable parts or assist in patient positioning.
