LM35
The LM35 temperature sensor module is a reliable and precise device. utilized for measuring ambient temperature. It operates within a supply voltage range of 4 to 30V , providing an analog output proportional to the temperature in Celsius. With its low self-heating and linear output characteristics, the LM35 is extensively employed across diverse electronic applications for temperature monitoring and control.
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
General Description:
The LM35 temperature sensor module is a reliable and precise device. utilized for measuring ambient temperature. It operates within a supply voltage range of 4 to 30V , providing an analog output proportional to the temperature in Celsius. With its low self-heating and linear output characteristics, the LM35 is extensively employed across diverse electronic applications for temperature monitoring and control.
Working Principle:
The LM35 temperature sensor utilizes a fundamental principle similar to that of a diode: as temperature rises, the voltage across the sensor increases at a predictable rate. This voltage change is accurately amplified to produce an analog signal directly proportional to the temperature. This straightforward mechanism allows the LM35 to reliably and precisely measure ambient temperature, making it a preferred choice for temperature sensing in various electronic applications.
Specifications:
1. Operates with a supply voltage of 5V.
2. It outputs an analog signal, which varies linearly with the temperature it measures.
3. It is capable of measuring temperatures within a wide range from -55°C to 150°C.
4. It offers a measurement accuracy of ±0.5°C.
Requirements
| S. No. | Component Name | Values |
|---|---|---|
| 1 | Resistor | 220R , 1K |
| 2 | LM35 sensor | |
| 3 | LED | |
| 4 | Male connector pin< | 4 |

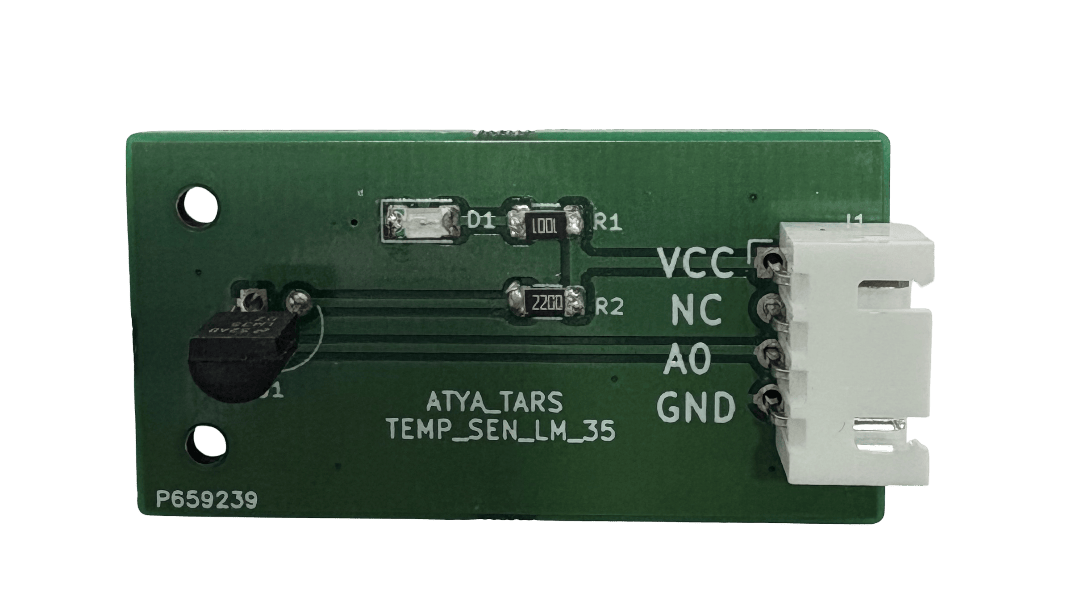

Pin configuration:
| S. No. | Pins | Pin Description |
|---|---|---|
| 1 | Vcc | 5V |
| 2 | NC | not connected |
| 3 | A0 | analog pin |
| 4 | GND | ground |
Applications:
1. Soil temperature testing.
2. Room temperature accuracy.
3. Image recognition and remote control.
4. Seawater distillation equipment.
