DHT22

Original price was: ₹200.Current price is: ₹99.

19 products sold in last 5 hours
Selling fast! Over 5 people have in their cart

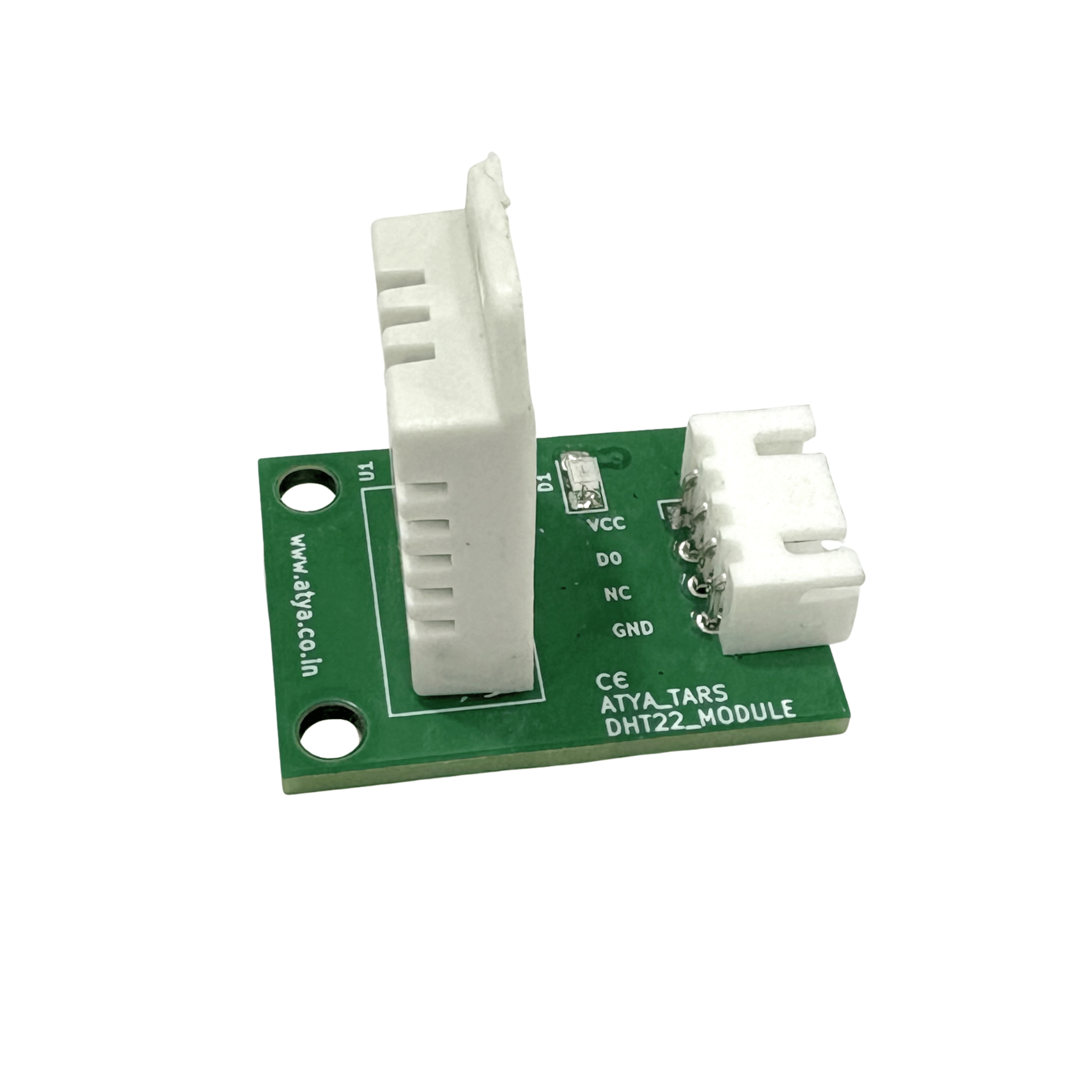

The DHT22 Digital Temperature and Humidity Sensor Module AM2302 is a basic, low-cost digital temperature and humidity sensor. It uses a capacitive humidity sensor and a thermistor to measure the surrounding air and spits out a digital signal on the data pin.

29 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

General Description:

The DHT22 Digital Temperature and Humidity Sensor Module AM2302 is a basic, low-cost digital temperature and humidity sensor. It uses a capacitive humidity sensor and a thermistor to measure the surrounding air and spits out a digital signal on the data pin.

Working Principle:

The DHT22 sensor measures temperature and humidity using a capacitive humidity sensor and a thermistor. The humidity sensor changes its capacitance based on moisture levels, while the thermistor’s resistance varies with temperature. These changes are converted into digital signals by an internal ADC, processed by a microcontroller, and communicated to an external microcontroller via a single-wire protocol. The sensor sends a 40-bit data packet with humidity, temperature, and a checksum for data integrity.

Specifications:

1. OperatingVoltage:3.5Vto5.5V.

2. Measuring current: 0.3mA.

3. Low power consumption.

4. Temperature range: -40 to 80 degree C.

5. Humidity range: 0% to 100%.

6. Accuracy: ±0.5°C and ±1%.

Requirements



S. No. Component Name Values
1 DHT22 1
2 Resistors 5.1k,1k
3 Capacitors 0.1uF
4 LED
5 Male Connector pin

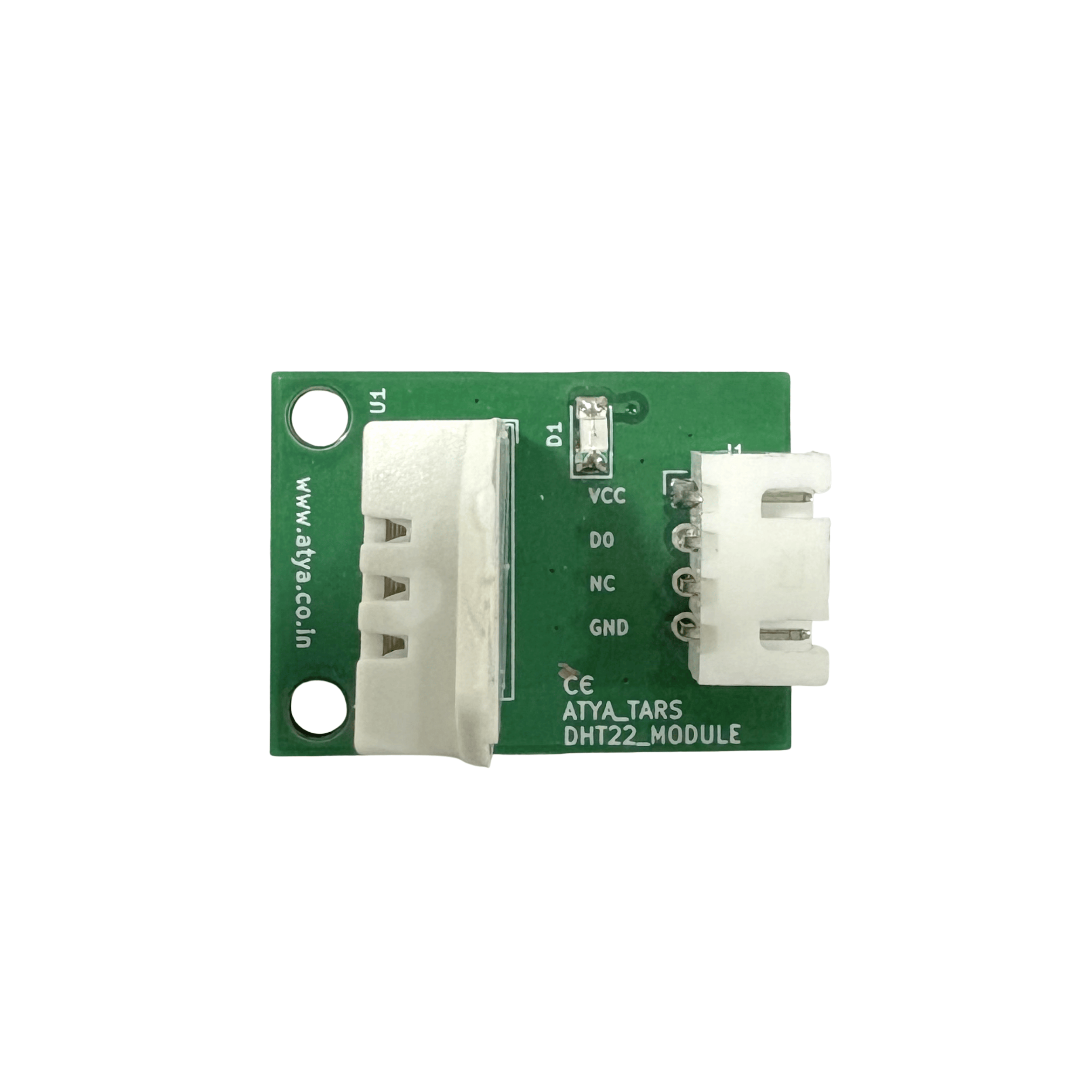

Pin configuration:



S. No. Pins Pin Description
1 Vcc 5V
2 D0 digital pin
3 NC No connection
4 GND ground

Applications:

1. Weather stations.

2. HVAC systems.

3. Environmental monitoring.

4. Agriculture.

5. Home automation.
