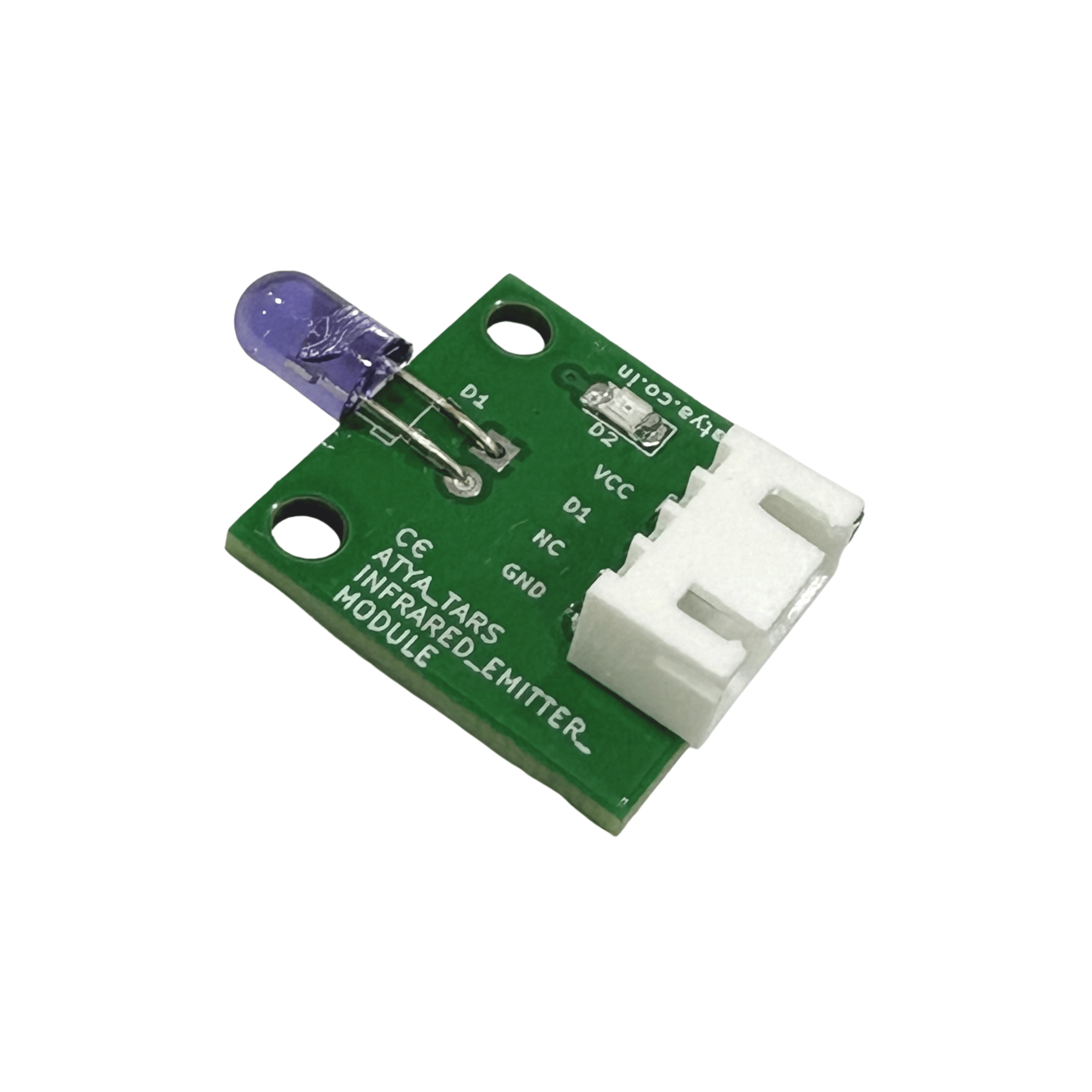

INFRARED EMITTER

Original price was: ₹200.Current price is: ₹99.

9 products sold in last 5 hours
Selling fast! Over 7 people have in their cart

An Infrared emitter, or IR emitter, is a source of light energy in the infrared spectrum. This little part is a light emitting diode (LED) that is used in order to transmit infrared signals from a remote control. This simple device operates at 940nm and works well for generic IR systems. This emitter is driven up to 50mA with a current limiting resistor as with any LED device.

20 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

General Description:

An Infrared emitter, or IR emitter, is a source of light energy in the infrared spectrum. This little part is a light emitting diode (LED) that is used in order to transmit infrared signals from a remote control. This simple device operates at 940nm and works well for generic IR systems. This emitter is driven up to 50mA with a current limiting resistor as with any LED device.

Working Principle:

The IR emitter, or infrared emitter, works by converting electrical energy into infrared radiation. This radiation is in the infrared spectrum, which is not visible to the human eye but can be detected by infrared sensors. The emitter typically consists of a semiconductor material that emits infrared light when current flows through it. This emitted light can be used for various applications such as remote controls, proximity sensors, and infrared communication.

Specifications:

1. Continuous Forward Current: 50mA.

2. Reverse Voltage: 5V.

3. Operating Temperature: -25~+85°C.

4. Wavelength: 940nm.

5. Voltage – Forward (Vf) (Typ): 1.2V.

Required Components:



S. No. Component Name Values
1 IR LED
2 Resistors 100R,1k
3 MMBT100
4 LED
5 Male connector pin 4

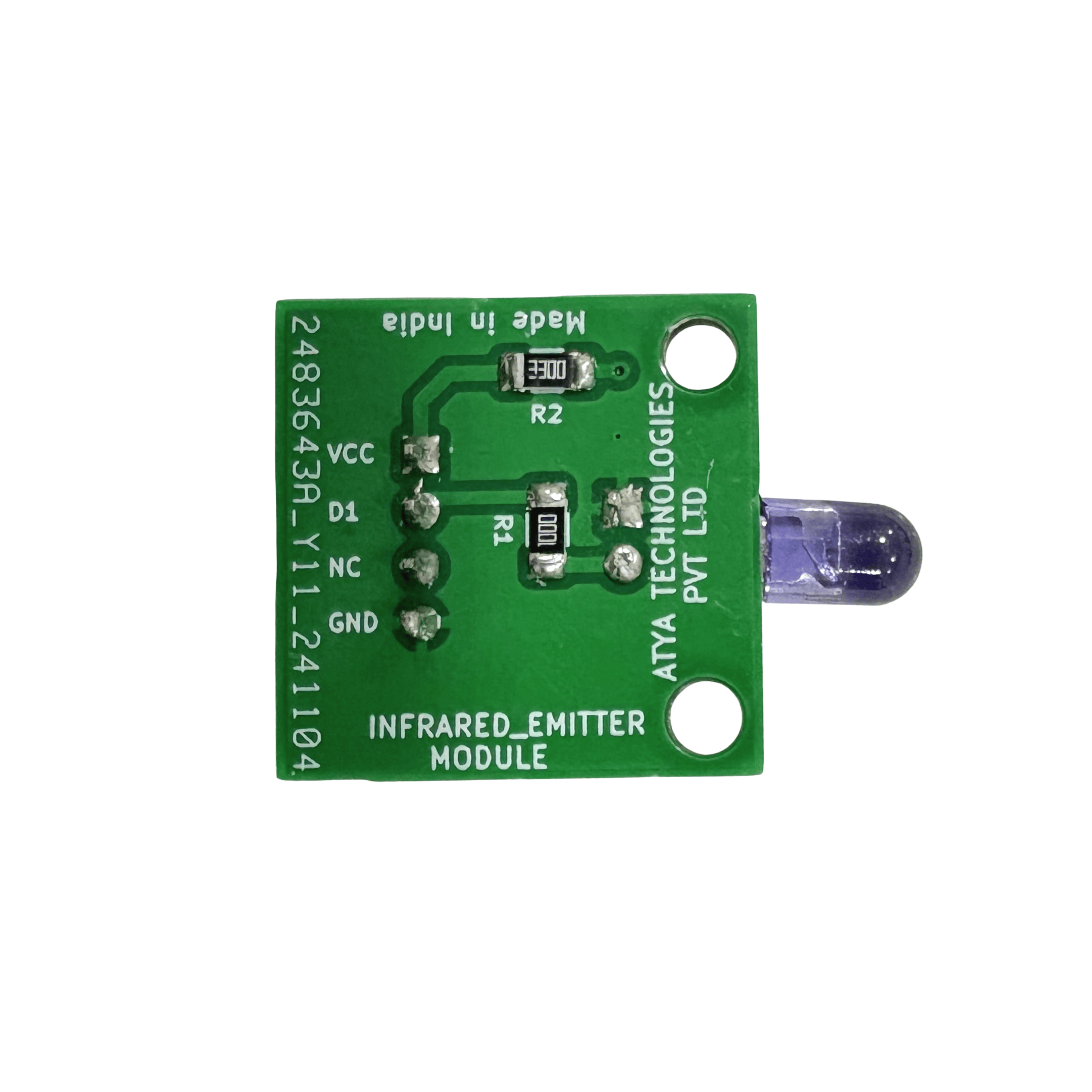

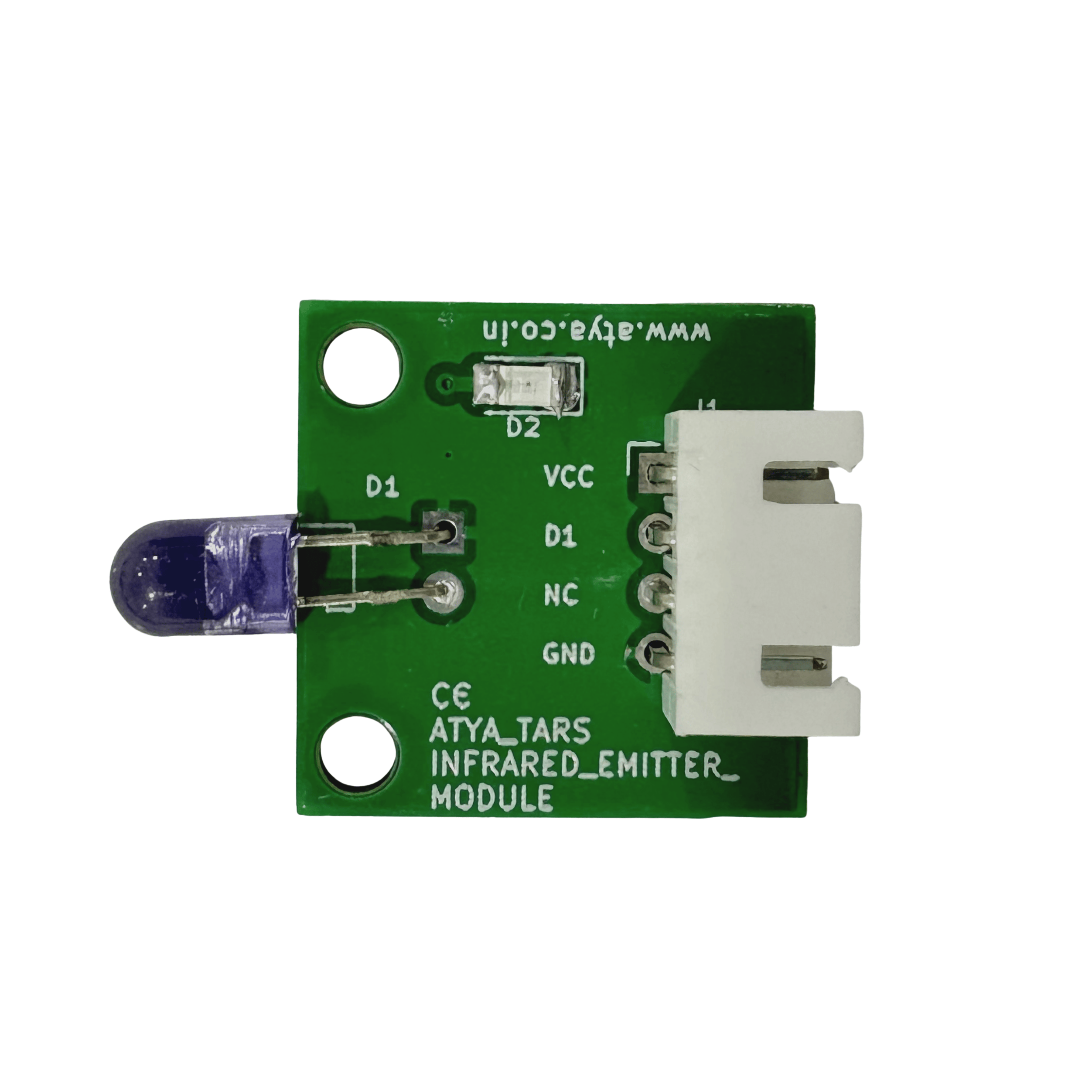

Pin configuration:



S. No. Pins Pin Description
1 VCC +5V
2 D1 Digital pin
3 NC No Connection
4 GND ground



Applications:

1. Infrared communication.

2. Object detection.

3. Optical encoders.

4. Infrared heating.

5. Spectroscopy.
