5-CHANNEL

Original price was: ₹100.Current price is: ₹89.

5 products sold in last 2 hours
Selling fast! Over 9 people have in their cart

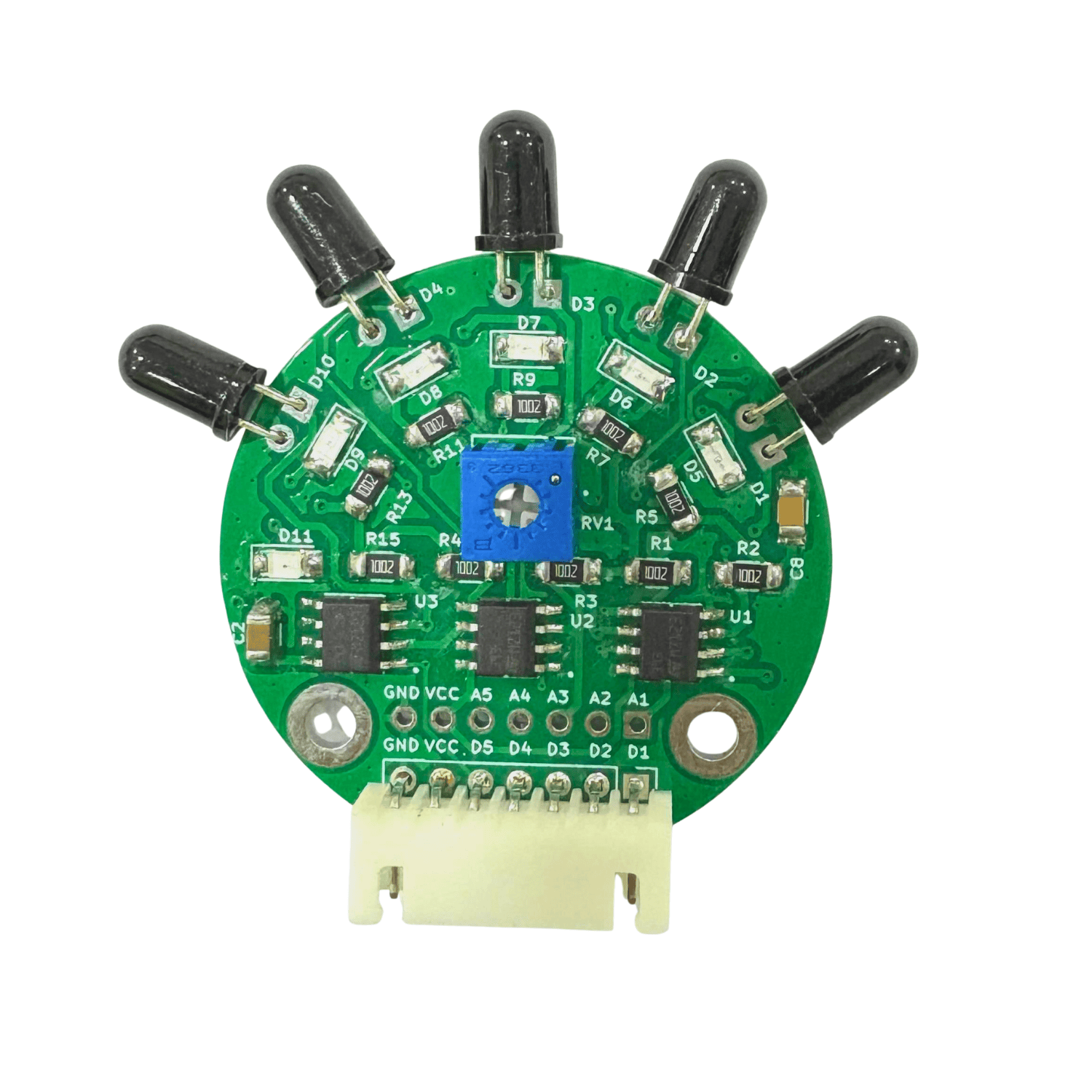

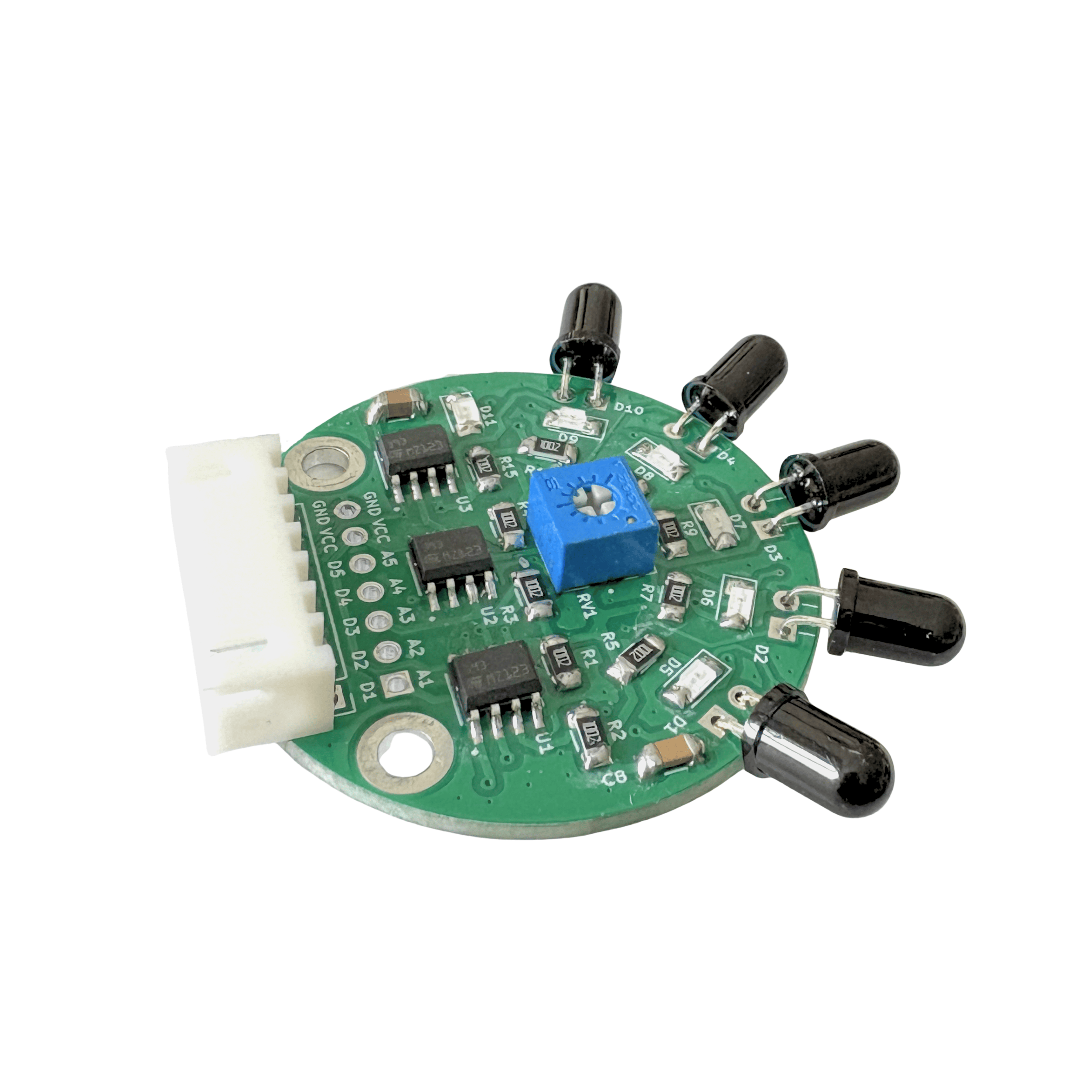

The 5-Channel Flame Sensor Module is a 5-channel flame detector module used to detect flame in a larger area (>120 degrees). Each sensor is arranged at 30 degrees. This module outputs an analog signal, which would be more precise, and also a digital signal which would be easier to use, you can adjust the digital output sensitivity by the onboard potentiometer. The 5 LED indicators are helpful in your debugging, the high-precision resistors also make this sensor more precise than other flame sensors.

21 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

General Description:

The 5-Channel Flame Sensor Module is a 5-channel flame detector module used to detect flame in a larger area (>120 degrees). Each sensor is arranged at 30 degrees. This module outputs an analog signal, which would be more precise, and also a digital signal which would be easier to use, you can adjust the digital output sensitivity by the onboard potentiometer. The 5 LED indicators are helpful in your debugging, the high-precision resistors also make this sensor more precise than other flame sensors.

Working Principle:

Flame sensors detect infrared (IR) light emitted by flames. They filter out ambient light to focus on flame-specific wavelengths. Processed signals exceeding a threshold trigger output signal. These signals are used to activate safety measures or alarms in fire detection systems.

Specifications:

1. The range of a wavelength is 760nm-1100 nm.

2. The flame test using a lighter distance would be 80cm and the distance range would be farther.

3. Sensor having the Analog and Digital output pins.

4. Adjustable detection range digital and analog output sensitive.

5. LM393MX is a dual voltage comparator IC (Integrated Circuit).

6. Operating Voltage: 3.3V – 9V.

7. 1 x 5-Channel Flame Sensor Module.

Requirements



S. No. Component Name Values
1 LM393MX (voltage comparator op-amp) 3
2 Flame Sensor (Phototransistor) 5 no.
3 Resistors 3k, 1.5k, 33k
4 Capacitors 100p,
5 Male connectors 12
6 LEDs (sensor detect indicators) Blue (5) smd
7 Potentiometer (Adjustable) 10k



Pin configuration:



S. No. Pins Pin Description
1 A1 First Input analog pin
2 D1 First output digital pin
3 A2 Second Input analog pin
4 D2 Second output digital pin
5 A3 Third Input analog pin
6 D3 Third output digital pin
7 A4 Fourth Input analog pin
8 D4 Fourth output digital pin
9 A5 Fifth Input analog pin
10 D5 Fifth output digital pin
11 VCC 3.3V-9V
12 GND ground

Applications:

1. Fire detection and alarm systems

2. Industrial safety

3. Environmental monitoring

4. Automotive

5. Security systems

6. Furnaces and boilers
